Home 2006 Dodge Ram 1500 Laramie 4.7L V8 - Flex Case and Extension

Case and Extension for 2006 Dodge Ram 1500

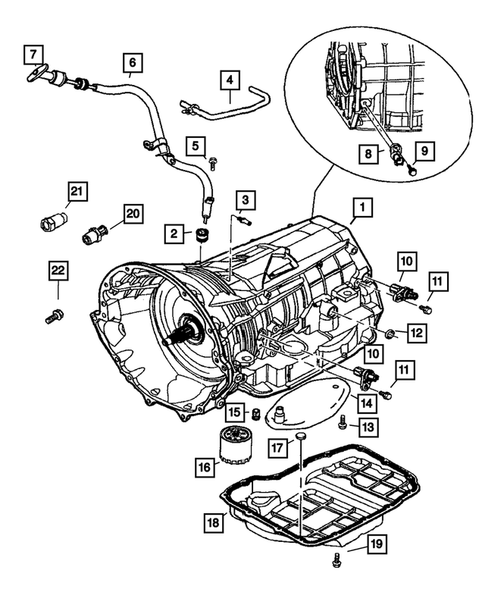

No.

Part # / Description / Price

Price

N/A

Transmission Dust Cover

52104344AA

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION. ALL AUTO TRANS (DO NOT USE 2010+).

MSRP $38.00

$28.25

MSRP $38.00

$28.25

Transmission Case

4799613AB

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

View Details

Transmission Case Package

5189883AC

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $2,300.00

$1,487.85

MSRP $2,300.00

$1,487.85

Grommet

4810021

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Oil Filler Tube To Case

View Details

Grommet

4810021AB

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: After [08/02/04]. Transmission Oil Filler Tube. Fill Tube Seal. Oil Filler Tube To Case.

Not For Sale

Transmission Vent

4799861AB

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: In case

MSRP $9.75

$7.25

MSRP $9.75

$7.25

Vent Tube

53032457AA

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Use Before Build Date 05/19/2008

View Details

Hex Flange Head Bolt

6501979

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M6X1.00X17.00. Vapor Canister Cover & Heat Shield to Bracket

MSRP $8.60

$6.44

MSRP $8.60

$6.44

Transmission Oil Filler Tube

53032517AB

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

View Details

Transmission Fluid Level Indicator

53032518AC

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $33.75

$25.13

MSRP $33.75

$25.13

Pressure Sensor Transducer

4799758af

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Transmission Temperature Thermister. Line Pressure.

MSRP $105.00

$69.94

MSRP $105.00

$69.94

Hex Head Bolt And Coned Washer

6101331

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M6X1.00X20.00

MSRP $8.90

$6.63

MSRP $8.90

$6.63

Transmission Input Speed Sensor

4799061AB

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Input and Output Speed Sensor.

MSRP $60.70

$43.32

MSRP $60.70

$43.32

Seal

4799346

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Manual Lever Shaft. Latch Adjustment Hole.

MSRP $6.95

$5.06

MSRP $6.95

$5.06

Pan Head Screw

6503232

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M5 x 0.8 x 12.60

MSRP $1.75

$1.25

MSRP $1.75

$1.25

Transmission Oil Sump Filter Package

5015267AD

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Sump.

MSRP $77.10

$54.86

MSRP $77.10

$54.86

5013470AE - Automatic Transmission Multi-Speed: Transmission Oil Sump Filter Package for Mopar Image

Transmission Oil Sump Filter Kit

05013470ae

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: TRANSMISSION OIL

MSRP $74.25

$52.84

MSRP $74.25

$52.84

Flow Control Valve

4799681

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: BY-Pass Valve. Filter By-Pass.

MSRP $22.95

$17.00

MSRP $22.95

$17.00

Transmission Oil Filter Package

5179267AD

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Cooler Return Filter.

MSRP $54.00

$38.38

MSRP $54.00

$38.38

Valve Body Gasket And Seal Package

68207789AA

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Can be used with Oil Pans 52852912AA and 52852912AB

MSRP $8.60

$5.30

MSRP $8.60

$5.30

Transmission Oil Pan

68065921AA

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

View Details

Transmission Oil Pan

68065923AA

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $101.00

$67.48

MSRP $101.00

$67.48

Hex Head Screw And Washer, Mounting

6101221

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M6x1x12. Prop Shaft Heat Shield to Trans Pan

MSRP $4.45

$3.31

MSRP $4.45

$3.31

Quick Connect Fitting Kit

52119547AA

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Cooler Line to Trans Case. Transmission Cooler Line To Transmission. Pressure. Return. Up to 07-17-2004.

MSRP $38.65

$28.94

MSRP $38.65

$28.94

Pressure Check Plug

6030035

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Transmission Pressure Check

MSRP $8.75

$6.50

MSRP $8.75

$6.50

Hex Head Bolt And Washer, Mounting

6022266

Mopar

Notes: Engines: 3.7L V6 ENGINE. ALL 4.7L V8 ENGINES. All 5.7L 8Cyl Gas Engines. ALL V6 ENGINES. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION. ALL AUTO TRANS (DO NOT USE 2010+). All Manual Transmissions.

Description: .375-16x1.50. Transmission Case to Cylinder Block

MSRP $12.50

$9.38

MSRP $12.50

$9.38

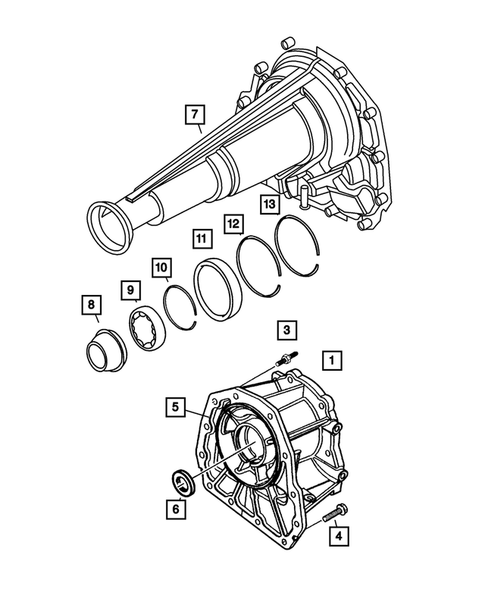

No.

Part # / Description / Price

Price

N/A

Adapter Seal

52119498AA

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Included in Item 1

MSRP $39.55

$29.50

MSRP $39.55

$29.50

Transfer Case Adapter

52107719AC

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $848.00

$559.90

MSRP $848.00

$559.90

Stud

6505064AA

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M10x1.5x62

MSRP $6.95

$5.06

MSRP $6.95

$5.06

Hex Head Screw And Washer, Mounting

6504774

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M10x1.5x37. Adapter to Transmission Case

MSRP $7.80

$5.69

MSRP $7.80

$5.69

Input Seal

4799090

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Extension / Adapter To Transmission Case

MSRP $29.35

$21.81

MSRP $29.35

$21.81

Input Gear Seal

5019020AB

Mopar

Description: W/[52105024AC]

MSRP $31.60

$23.69

MSRP $31.60

$23.69

Transmission Rear Extension Housing

52120081AA

Mopar

Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Includes Output Includes Output Shaft and Items 6 to 11

MSRP $1,165.00

$756.80

MSRP $1,165.00

$756.80

Output Shaft Seal

4531216AB

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Rear Extension Seal 2WD.

MSRP $52.30

$37.13

MSRP $52.30

$37.13

Output Shaft Bearing, Rear

2466224

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: 52105959aa. From 9/10/02. Rear.

View Details

Snap Ring, Rear

4461069

Mopar

Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. All 5.7L 8Cyl Gas Engines. ALL V6 ENGINES. Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC 48RE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Rear.

MSRP $11.55

$8.56

MSRP $11.55

$8.56
