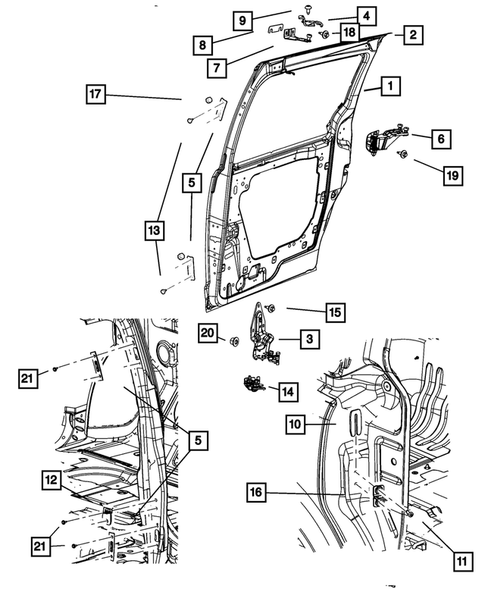

Sliding Cargo Door for 2012 Ram C/V
Sliding Door Hinge, Right And Left, Upper
Right and Left Upper.
1.25 mm thick. Front Door Latch to Door 1.25mm. Rear Door Latch to Door 1.25mm. 1.25MM Thick. 2.50mm. 1.25nn Thick.
Torx Head Screw
M8x1.25x34. Stirker To Body. M8x1.25x39.5. Sliding Door Latch Striker Attaching. Black. Striker To B-Pillar. Door Striker To BSA. Striker mounting. Striker to Body. For Door latch Striker #4.
Screw
M6x1.0x23.2. Stabilizer Attaching. Front Bar to Rear Bar. Tail lamp to body. Cargo Loop To Body. M6x1.00x23.200.
Hex Flange Lock Nut
M6x1.00. Throttle Body Shield to Intake Manifold. Heater return tube to engine. Rod to Lever Assembly. Engine Oil Level Indicator Tube. Accelerator Pedal Assembly to Dash Panel. M6. Quantity Of 4 Is Needed. Parking Brake Cable Guide to Floor Pan.
M6x1.00x19.00. Rail to Box. Pencil brace attach to plenum.
Foam Around Latch & Lock Out Lever. Foam On Sliding Door. After 03/19/09.
Large Round Washer Head Lock Screw
M6x1.00x20.00. Latch Attach. M6x1.00x22.00. Filler Pipe to Body. Liftgate to Latch.
Sliding Door Exterior Handle, Right & Left
SLIDING DOOR EXTERIOR
Sliding Door Exterior Handle, Right & Left
SLIDING DOOR EXTERIOR
Sliding Door Exterior Handle, Right & Left
SLIDING DOOR EXTERIOR
Sliding Door Latch, Right
SLIDING DOOR
Sliding Door Latch, Right
SLIDING DOOR
License Place Mounting. License Plate Attach. Pad. License Plate MTG to Liftgate.
Tapping Screw
M6x2.14x17.55. Channel To Door Attaching. Latch To Door. Handle Attaching. Outside Front Door Handle to Front Door. Lower Glass Run Channel To Door.
Sliding Door Upper Track. M6 x 1.00. Ambient Temp Sensor mounting.
Power Sliding Door Track, Right
POWER SLIDING DOOR
Power Sliding Door Track, Left
POWER SLIDING DOOR
M6x20x14. Attach Clip Cable to Body. Cooler Attach To Frame.
